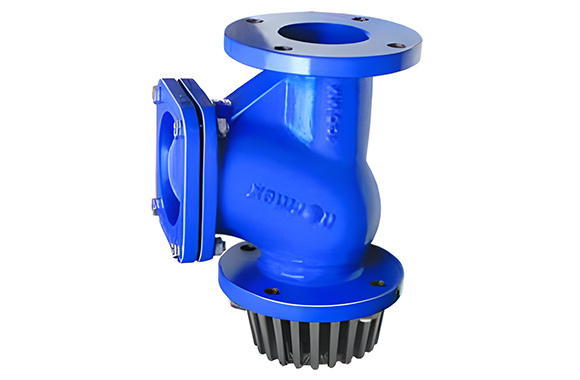

Model B - 05
Ball Foot Valve (Flanged)- BRAND - Normex
- TYPE - Ball Foot Valve
- SIZE - 25 MM TO 350 MM
- Pressure Rating - PN6/PN10/PN16
- MOC - CI/SS/CS
Features:
Heavy duty foot valve. Most suitable where suction pressure is on higher side. Model B-05 is higher pressure rated foot Valve. This is a check Valve with strainer attached used as foot Valve. To be used where ever very high pressure in suction line.

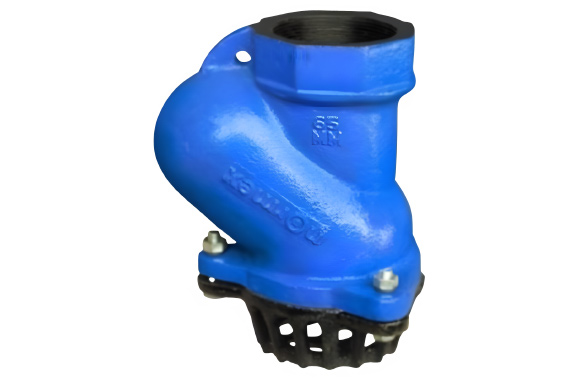

Model B - 04
Ball Foot Valve (Threaded)- BRAND - Normex
- TYPE - Ball Type Check Valve
- SIZE - 25 MM TO 100 MM
- Pressure Rating - PN6/PN16
- MOC - CI/SS/CS
Features:
This valve has a quality for withstanding consistent performance and longer life, Installation can be vertically or horizontally, Non clogging and self cleaning mechanism, Maintenance free, This valve is offered in one side threaded and other side strainer design.

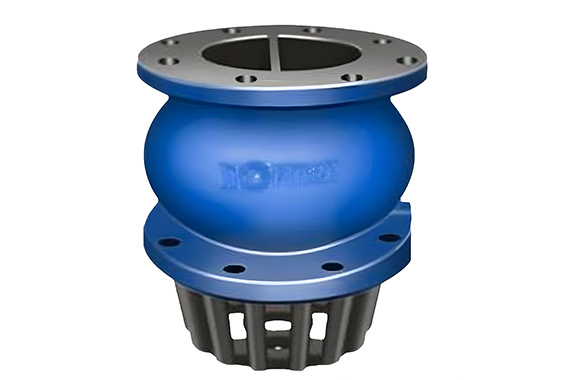

Model H - 04
Silent Check Valve- BRAND - Normex
- TYPE - Silent Foot Valve
- SIZE - 40 MM TO 400 MM
- Pressure Rating - PN6/PN10/PN16
- MOC - CI/SS/CS
Features:
The closing mechanism is guided and backed with return spring for quick closing and opening, This valve has a quality for withstanding consistent performance and longer life, Due to aero/hydro dynamic effect water hammer is eliminated

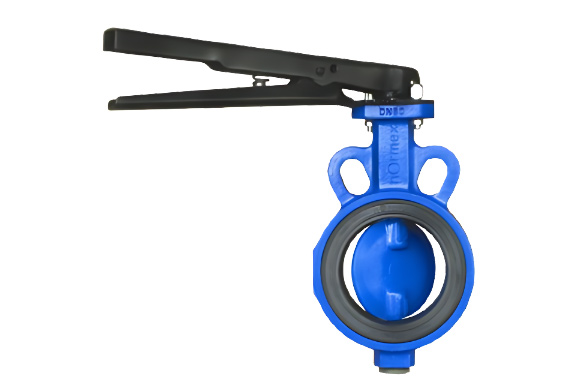

Normex Butterry Valve
- BRAND - Normex
- TYPE - Normex Butterry Valve
- SIZE - 40 MM TO 450 MM
- Pressure Rating - PN6/PN10/PN16
- MOC - CI/SS/CS
Features:
Excellent flow control in quarter turn operation, Compact, space saving design, Bi-directional 100% tight shut off, Low weight, low maintenance, long service life, Easy automation / retrofit possible, Stream lined valve disc for lower pressure drop, Gasket packing not required to install between flanges.
