Bonfiglioli Gear Box / Gear Motor

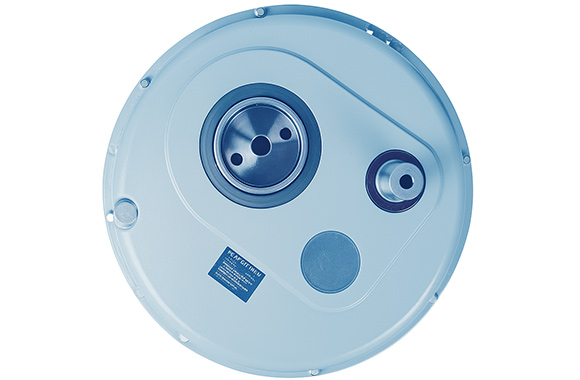

TA series

Shaft Mounted Speed Reducers
The sturdy and weather-resistant product for the material handling industry.

The TA series has long established itself in the industry until become a best seller for the quarry and mine applications where absolute reliability and low maintenance are key factors.

Also appreciated is the backstop option that prevents backdriving in case of incline conveyors.

  • Torque Range : 180 … 17000 Nm
  • Mechanical Rating (n₁ = 1400 min⁻¹) : 1.1 … 226 kW
  • Gear Ratios : 5.0 … 31.5
Output
  • Keyed hollow shaft
  • Up to three bore options per frame size
Gearcase
  • Sturdy cast iron housing suitable for outdoor installation
Backstop
  • Available on all frame sizes – externally accessible
Type Torque [Nm]
TA 13 180
TA 35 420
TA 40 950
TA 45 1400
TA 50 2300
TA 60 3600
TA 70 5100
TA 80 7000
TA 100 11000
TA 125 17000

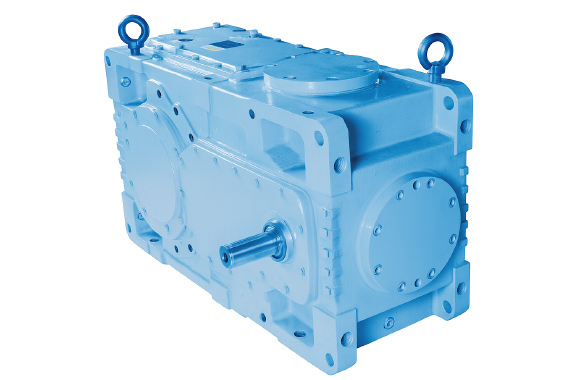

HDP Series

Parallel Shaft Gear Units
The New Benchmark in the Parallel Shaft Category.

Torque ratings consistently high, gear ratios in close progression, numerous mounting options along with compact dimensions will ease the engineering of any application. The housing from nodular cast iron ensures robustness even in the harshest environment and the class of precision around gears are machined into helps to produce an extremely quiet and vibration-free operation.

  • Fan cooling, cooling coil, heaters
  • Independent cooling systems
  • Backstop
  • Non-contacting seals
  • Forced lubrication
  • Temperature and oil level sensors
  • Drywell
  • Torque arm
  • Taconite seals
  • Thrust Bearings
  • Torque Range : 5000 ... 210000 Nm
  • Gear Ratios : 7.1 ... 534.5
  • Mounting : Foot, flange, shaft mounting
Input
  • Solid shaft, motor adapter
Output
  • Solid (single and double extension), keyed hollow, shrink disc
Type Torque [Nm]
HDP 60 5190
HDP 70 7080
HDP 80 12600
HDP 90 17900
HDP 100 28200
HDP 110 31700
HDP 120 41000
HDP 125 49000
HDP 130 69500
HDP 140 87000
HDP 150 117000
HDP 160 147000
HDP 170 190000
HDP 180 210000

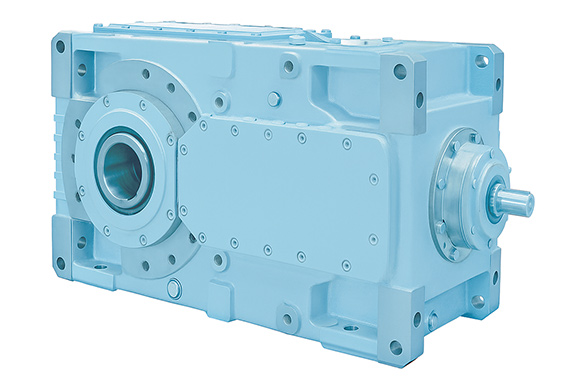

HDO series

Bevel Helical Speed Reducer
The heavy-duty product that matches performance and versatility with compactness.

The new bevel helical series from Bonfiglioli optimises superior performance with compact dimensions and flexibility. The several options that can be selected from the catalogue facilitate customization to meet specific application requirements. Gear case from nodular cast iron guarantee rigidity in all circumstances while gears, integrally ground finished on their profile, ensure quiet and vibration-free operation even in the harshest conditions.

  • Fan cooling, cooling coil, heaters
  • Independent cooling systems
  • Backstop
  • Non-contacting seals
  • Forced lubrication
  • Temperature and oil level sensors
  • Drywell
  • Torque arm
  • Taconite seals
  • Torque Range : 25650 … 210000 Nm
  • Gear Ratios : 5.6 … 400
  • Mounting : Foot, Flange, Shaft Mounting
Input
  • Solid shaft, lantern housing c/w flexible coupling double input shaft (pony drive)
Output
  • Solid (single and double extension), keyed hollow, shrink disc
Type Torque [Nm]
HDO 100 28200
HDO 110 31700
HDO 120 41000
HDO 125 49000
HDO 130 69500
HDO 140 87000
HDO 150 117000
HDO 160 147000
HDO 170 190000
HDO 180 210000

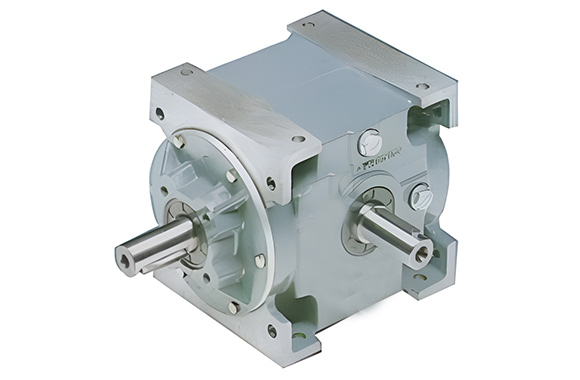

RAN series

The handy drive when it comes to angled transmissions.

The units of the RAN series are designed to fit the purposes of transmissions laid out in right angle setting. Easy to fit and almost maintenance-free, RAN units offer multiple shaft arrangements and a choice of several exact gear ratios, beside the 1:1, that come handy when designing synchronized drive systems. Also available in the version for screw jack duty.

  • Torque Range : 2.8 ... 3000 Nm
  • Mechanical rating (n₁ = 1400 min⁻¹) : 0.15 ... 90 kW
  • Gear Ratios : 1.0 ... 7.7
Shaft arrangement
  • Single and double shaft projection
Input
  • Solid input shaft
Input
  • Solid – single and double projectionn
Output Shaft
  • Keyed hollow
Gear Ratios
  • i = 3
Rated Thrust Capacity
  • RAN 1 – 50000 N
  • RAN 2 – 80000 N
  • RAN 2R – 150000 N
Type Torque [Nm]
RAN 1 1350
RAN 2 3000
RAN 2A 3000
RAN 8 2.8
RAN 15 13
RAN 18 22
RAN 20 37
RAN 24 120
RAN 25 54
RAN 28 190
RAN 38 380
RAN 48 700

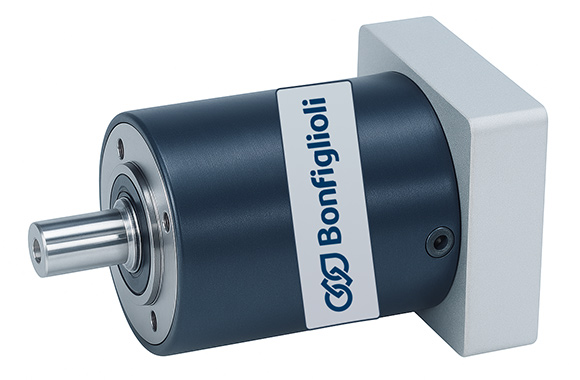

LC series

Planetary Precision Gearbox
Low Backlash at a Competitive Price

The LC Series of planetary gearboxes is characterised by low backlash, silent running and easy motor coupling.

  • Torque Range : 12 … 300 Nm
  • Maximum Acceleration Torque : 20 … 450 Nm
  • Transmission Ratios : 3 … 100
Output Configuration
  • Flange mounting
Input Configuration
  • Wide range of coupling configurations to suit most common servomotors
Maintenance
  • Lubricated for Life
Type Rated Torque [Nm]
LC 050 12
LC 070 25
LC 090 43
LC 120 110
LC 155 300
Type Acceleration Torque [Nm]
LC 050 20
LC 070 35
LC 090 80
LC 120 190
LC 155 420
Backlash [Arcmin] 1 Stage 2 Stage
Standard 12 15
Reduced 6 8

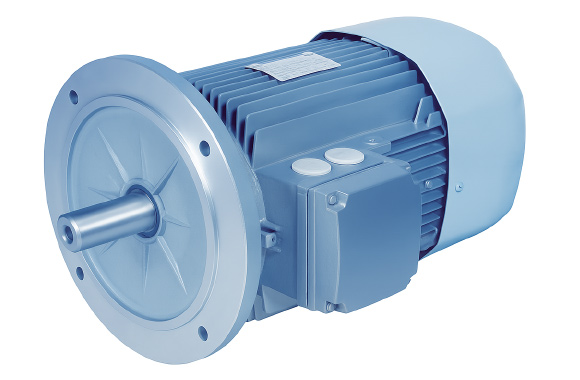

BE series

IE2 AC Motors
Class IE2 High Efficiency Ac Motors.

The IEC-normalized BE motors comply with IEC 60034-30:2008 (efficiency classes) and all the applicable international standards, including the EMC and LV directives. They are available in the 0.75–22 kW range in the foot and the flange mounting version, the latter in both the IM B5 and the IM B14 configuration. Single and multispeed versions are available with generally two brake options offered, one DC and one AC supply, lending further flexibility to the system. Finally, all motors are inverter duty.

  • DC and AC supply
  • Controlled AC/DC rectifier type NB, SB, NBR, SBR (options)
  • Brake Microswitch
  • Thermistors and thermostates sensors
  • Separate supply forced ventilation
  • Line driver and push-pull incremental encoder
  • CSA & UL approved design
  • Additional input cable entry
  • Plug & play connectors
  • KW rating (4 pole) : 0.75 ÷ 22 kWn
  • Frame Sizes : 80B ... 180L
  • Pole Numbers : 2, 4, 6
  • Operation : 50 Hz and 60 Hz
  • Inverter duty : All frame sizes
  • Housing : Cast aluminum
Mounting options
  • Foot IM B3
  • Flange IM B5 and IM B14
Compliance
  • IEC 60034-30:2008 (IE), 640/2009/EC
  • 2006/95/EC (LVD) and 2004/108/EC (EMC)

Type Torque [Nm]
BE 80B 0.75
BE 90S 1.1
BE 90LA 1.5
BE 100LA 2.2
BE 100LB 3
BE 112M 4
BE 132S 5.5
BE 132MA 7.5
BE 132MB 9.2
BE 160M 11
BE 160L 15
BE 180M 18.5
BE 180L 22
